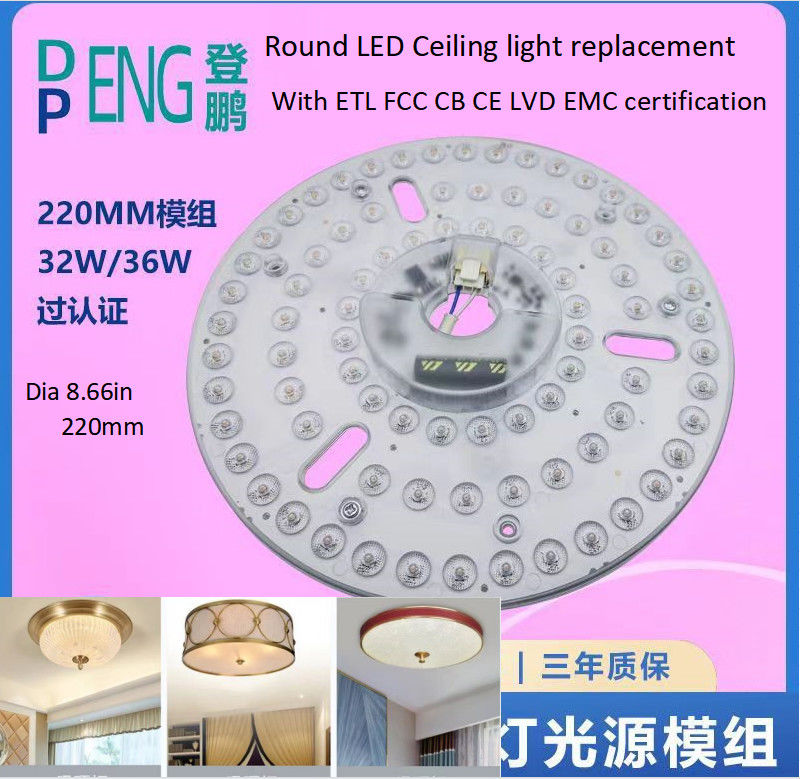

8.66" 220mm Dimmable Round Led Ceiling Light Replacement 120v Led Ceiling Module FCC,ETL,CB,CE,LVD,EMC Certificate
Product Details:
| Place of Origin: | FOSHAN,CHINA |
| Brand Name: | DPENG |
| Certification: | ETL,CE,CB,ERP |
| Model Number: | DP-WY36W-CE-D220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 6.9 |
| Packaging Details: | outer carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 9000pcs/day |
|
Detail Information |
|||
| Type: | LED Modules | Lighting Solutions Service: | Lighting And Circuitry Design, Auto CAD Layout |
|---|---|---|---|
| Chip Material: | INGAN | Viewing Angle(°): | 120 |
| Operating Temperature(℃): | -25 - 80 | Storage Temperature(℃): | -35 - 85 |
| Brand Name: | DPENG | Product Name: | LED PCB Module |
| LED: | 2835SMD | PCB Material: | Aluminum |
| Board Thickness: | 1.2mm,can Be Customized | Copper Thickness: | 25um/35um |
| CCT: | 2700K/3000K/3500K/4000K/6000K/6500K | Wattage: | 36W |
| Lumen: | 120lm/w | Dimension: | Dia220mm |
| Highlight: | 220mm led ceiling module,8.66'' led ceiling module,120v led ceiling module |
||
Product Description
Specification
Diameter:8.66"
Output Power: 32W-36W
Input voltage: AC120V-230V
LED Quantity: 82pcs leds
Beam Angle:180 Degrees
Material: Aluminum
Working Temperature: -20℉~100℉
Lifetime: 30,000 hours
Where do you use LED light modules?
Initially, LED light modules were designed to light up signs and channel lettering. Now you can find them used in many applications in your home, vehicle, or office.
Use light modules in:
- LED light fan
- LED Ceiling light
32W 36W EXACT WATTS,120V.AC,230V.AC,
DIA 220MM, 8.66"INCH
We have many items,please check the list as above. All the LED moudles no need the driver,can directly link the wire.
Easy operated and good quality.
Product pictures:
1.Front view:
Company gate
Engineer department:
Full inspection
Insulation adhesive adding
Screwing the screws:
Long time testing:
We have many equipments:
